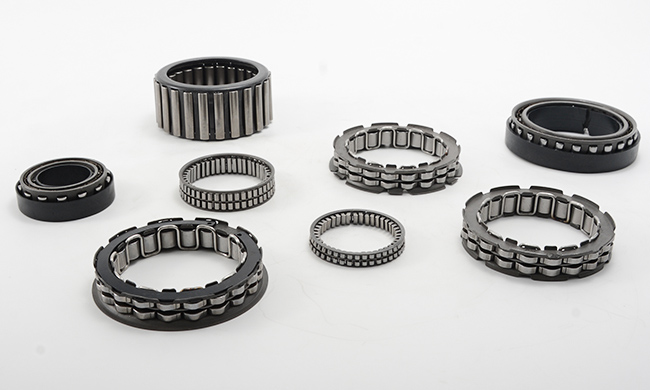

Stamped Steel One Way Clutch Bearing Plastic Cage Freewheel Clutch Hardened

  • 1
  • 2

Brand Name : MOUETTE

Model Number : FE 412 Z, FE 414 Z, FE 416 Z, FE 422 Z, FE 423 Z, FE 425 Z, FE 427 Z, FE 428 Z, FE 430 Z, FE 432 Z, FE 433 Z, FE 435 Z, FE 437 Z, FE 438 Z, FE 442 Z, FE 443 Z, FE 448 Z, FE 453 Z, FE 458 Z, FE 459 Z, FE 463 Z, FE 468 Z, FE 470 Z, FE 473 Z, FE 478 Z, FE 488

Certification : ISO/TS 16949:2009, ISO 9001:2008

Place of Origin : China

MOQ : 100

Price : USD8 per Piece

Payment Terms : L/C, T/T, D/A, Western Union, Paypal

Supply Ability : 500,000 Pieces per Month.

Delivery Time : 3-45 working days.(Huge Quantity Stocks Available))

Packaging Details : Plastic bags, Cartons and European Standard Plywood Case.

Name : Freewheel clutch Insert Element One Way Clutch Bearing

Spring : Tension spring (Z)

Cage Material : Stamped steel/ Plastic (PA)

Sprags Material : Hardened bearing steel

Installation tolerances : Shaft h5; hub H6

Operating temperature : max. 140°C

Constraints : The freewheel clutch insert element requires axial constraints on both sides.

Lubrication : designed for oil lubrication. Operative grease filling on request.

Contact Now

Sprag Type Freewheel Clutch Insert Element One Way Clutch Bearing

Components

Freewheel clutch Insert Element FE 400 Z

· Spring: Tension spring (Z)

· Cage: Stamped steel/ Plastic (PA)

· Sprags: Hardened bearing steel

Start gap height h0 = 4 mm

Operating temperature: max. 140°C

Lubrication

Oil or grease lubrication:

Delivered with corrosion protection. Operative grease filling on request.

Installation

Installation tolerances:

Shaft h5; hub H6

Inner ring/shaft:

Steel , HRC 60+4 (HV 700+100); Eht ≥ 1,3 mm; Rz ≤ = 2,5 µm

Outer ring/housing:

Steel, HRC 60+4 (HV 700+100); Eht ≥ 1,3 mm; Rz ≤ 2,5 µm

Constraints:

The freewheel clutch insert element requires axial constraints on both sides.

Mating parts:

Hardening and grinding of the mating parts is necessary. Chamfered shafts and hubs ease installation.

Bearing:

Freewheel clutch insert elements are not self-centering. External bearing support to define the gap between mating parts (Shaft and housing) is necessary.

Sprag Type Freewheel Clutch Insert Element One Way Clutch Bearing Specifications:

FE 400 FE 400 Z FE 400 Z2

Idling Speed Clutch nmax

[RPM]

 Dimensions [mm] Dimensions [inch]
Part Number Torque M Part Number Torque M Part Number Torque M
[ftlb] [Nm] [ftlb] [Nm] [ftlb] [Nm] dL DL dL DL
　 　 　 　 　 　 FE 410 Z2 0.2 0.3 10000 2 10 0.0787 0.3937
　 　 　 FE 412 Z 2.2 3 FE 412 Z2 1.3 1.8 10000 4 12 0.1575 0.4724
　 　 　 　 　 　 FE 413 Z2 2.1 2.9 9000 5 13 0.1969 0.5118
　 　 　 FE 414Z 5 7 FE 414 Z2 1.9 2.6 8500 6 14 0.2362 0.5512
　 　 　 FE 416Z 9 12 FE 416 Z2 5.6 7.6 7500 8 16 0.315 0.6299
FE 422 36 48 FE 422 Z 32 44 FE 422 Z2 16 21 5300 14 22 0.5512 0.8661
FE 423 40 55 FE 423 Z 36 48 FE 423 Z2 18 24 5200 15 23 0.5906 0.9055
FE 425 50 68 FE 425 Z 43 58 FE 425 Z2 22 30 4700 17 25 0.6693 0.9843
FE 427 59 80 FE 427 Z 49 66 FE 427 Z2 27 36 4400 19 27 0.748 1.063
FE 428 64 87 FE 428 Z 55 75 FE 428 Z2 29 39 4200 20 28 0.7874 1.1024
FE 430 75 101 FE 430 Z 64 87 FE 430 Z2 34 46 4000 22 30 0.8661 1.1711
FE 432 86 116 FE 432 Z 71 97 FE 432 Z2 39 52 3700 24 32 0.9449 1.2598
FE 433 92 124 FE 433 Z 79 107 FE 433 Z2 41 56 3600 25 33 0.9843 1.2992
FE 435 104 141 FE 435 Z 90 121 FE 435 Z2 47 64 3400 27 35 1.063 1.378
FE 437 117 158 FE 437 Z 101 137 FE 437 Z2 53 71 3200 29 37 1.1417 1.4567
FE 438 124 168 FE 438 Z 106 144 FE 438 Z2 56 76 3100 30 38 1.1811 1.496
FE 442 152 207 FE 442 Z 131 178 FE 442 Z2 69 93 2800 34 42 1.3386 1.6535
FE 443 160 217 FE 443 Z 138 187 FE 443 Z2 72 98 2700 35 43 1.378 1.6929
FE 448 201 272 FE 448 Z 173 235 FE 448 Z2 90 122 2500 40 48 1.5748 1.8898
FE 453 246 333 FE 453 Z 207 281 FE 453 Z2 108 146 2200 45 53 1.7717 2.0866
FE 458 295 400 FE 458 Z 254 345 FE 458 Z2 131 178 2000 50 58 1.9685 2.2835
FE 459 305 414 FE 459 Z 263 357 　 　 　 　 51 59 　 　
FE 463 348 472 FE 463 Z 300 407 FE 463 Z2 149 202 1900 55 63 2.1654 2.4803
FE 468 405 550 FE 468 Z 349 474 FE 468 Z2 179 243 1750 60 68 2.3622 2.6772
FE 470 429 583 FE 470 Z 370 502 　 　 　 1700 62 70 2.4409 2.7559
FE 473 467 633 FE 473 Z 402 545 　 　 　 1600 65 73 2.559 2.874
FE 478 532 722 FE 478 Z 458 622 　 　 　 1500 70 78 2.7559 3.0709
FE 488 674 914 FE 488Z 581 788 　 　 　 1300 80 88 3.1496 3.4646

Note:

Maximum radial clearance pending application 0.04mm not a fixed parameter, bearing delivered on request.
